Vacuum Pump Rentals
Wintek Corporation has ~25 industrial vacuum system and vacuum pump rentals of various configurations available for rent on either a short-term or long-term basis including:
• SS and XP Liquid Ring Vacuum Systems
• Boosted Vacuum Systems for low operating pressures
• Dry Screw Vacuum Pumps & Systems
• Knock-Out Pots (can be rented by themselves or also with vacuum systems)
• Rotary Piston and Rotary Vane Vacuum Pumps
Please see the table below before a more detailed description of each rental. Click on the
in order to see a photo of each system.
| Wintek Serial # | Type | Wintek Model # | Performance | Explosion Proof? | Materials of Construction | Control Panel? | Electrical Detail | Additional Details | Shipping Dimensions | Shipping Weight (lbs) | Price ($/month) | Photo |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 05R003 | Liquid Ring Vacuum System | C45-WSS-150V-1FR | 130 ACFM @ 40 Torr | No | Standard | Yes | NEMA 12 Panel - 460 V | 10 HP Liquid Ring Vacuum Pump, TEFC, Full Recovery Sealant System, CS/Copper Construction w/ 45 sq. ft. pre-condenser | 63''L x 30''W x 65''H | 1,250 | $1,800 |  |
| 06R004 | Liquid Ring Vacuum System | C23-WSS-100V-1FRss | 90 ACFM @ 100 Torr | No | Stainless | Yes | NEMA 12 Panel - 460 V | 10 HP Liquid Ring Vacuum Pump, TEFC, Full Recovery Sealant System, w/ 23 sq. ft. pre-condenser | 65''L x 32''W x 64''H | 1,450 | $2,250 |  |
| 06R005 | Soil Vapor Extraction System | KO16-1T-VMX100V-K | 95 ACFM @ 125 Torr | No | Standard | Yes | NEMA 12 Panel - 230 V | 7.5 HP Oil-Sealed Liquid Ring Vacuum Pump, w/ 16” KO Pot, 7 gpm Progressive Cavity Transfer Pump | 85''L x 36''W x 85''H | 1,500 | $2,400 |  |

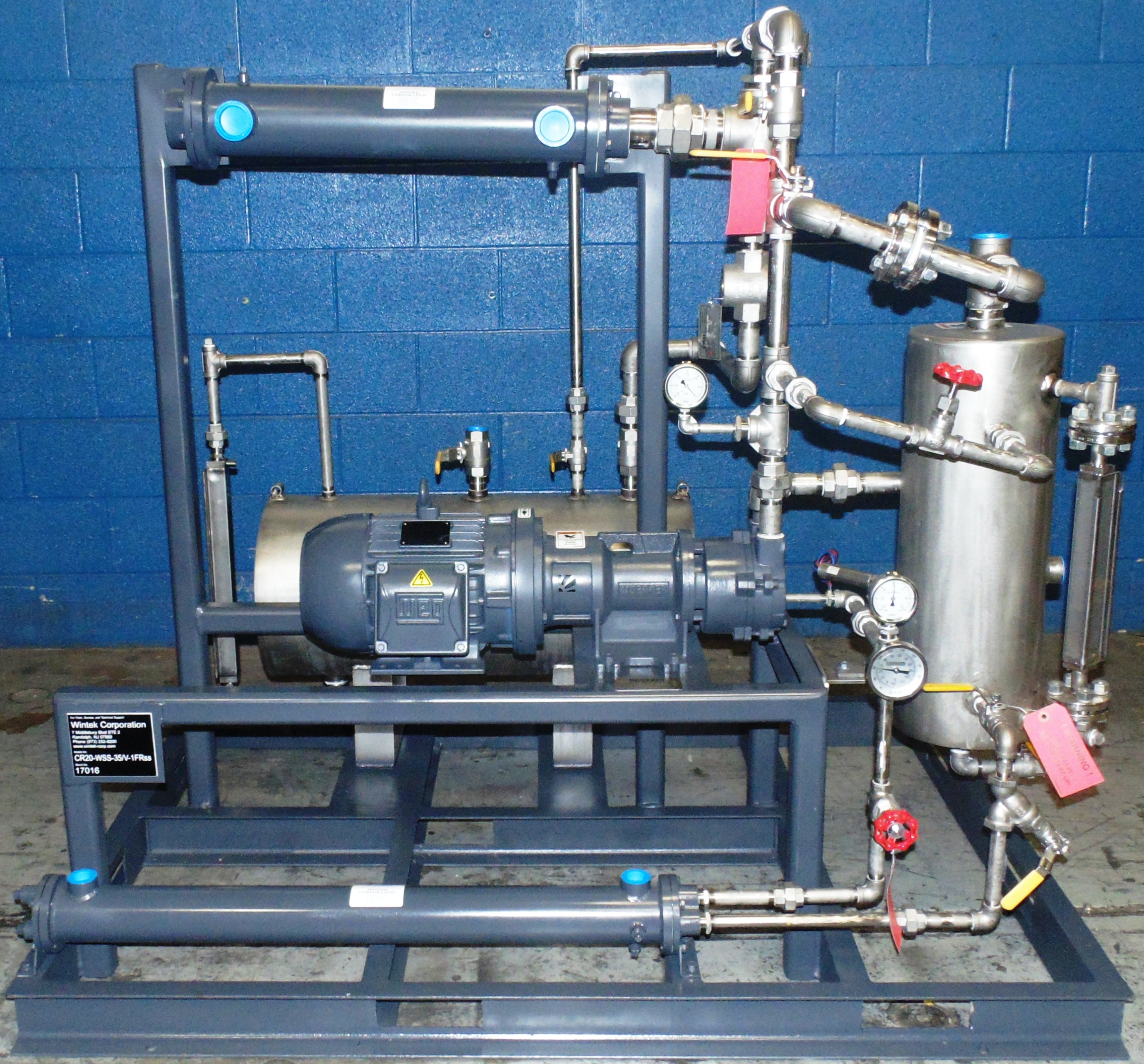

| 06R006 | Liquid Ring Vacuum System | C23-WSS-100V-1FRss | 80 ACFM @ 90 Torr | No | Stainless | Yes | NEMA 12 starter/control panel - 460 V | 10 HP Liquid Ring Vacuum Pump, Full Recovery Sealant System, All Stainless Construction, w/ 23 sq.ft. pre-condenser | 72''L x 35''W x 66''H | 1,250 | $2,250 |  |
| 06R007 | Liquid Ring Vacuum System | C35R7-WSS-150V-1FR | 115 ACFM @ 100 Torr | No | Standard | Yes | NEMA 12 starter/control panel - 460 V | 10 HP Liquid Ring Vacuum Pump, TEFC, Full Recovery Sealant System, CS/Copper Construction w/ 35 sq.ft. pre-condenser and 7 gal receiver | 85''L x 35''W x 75''H | 1,650 | $2,400 |  |

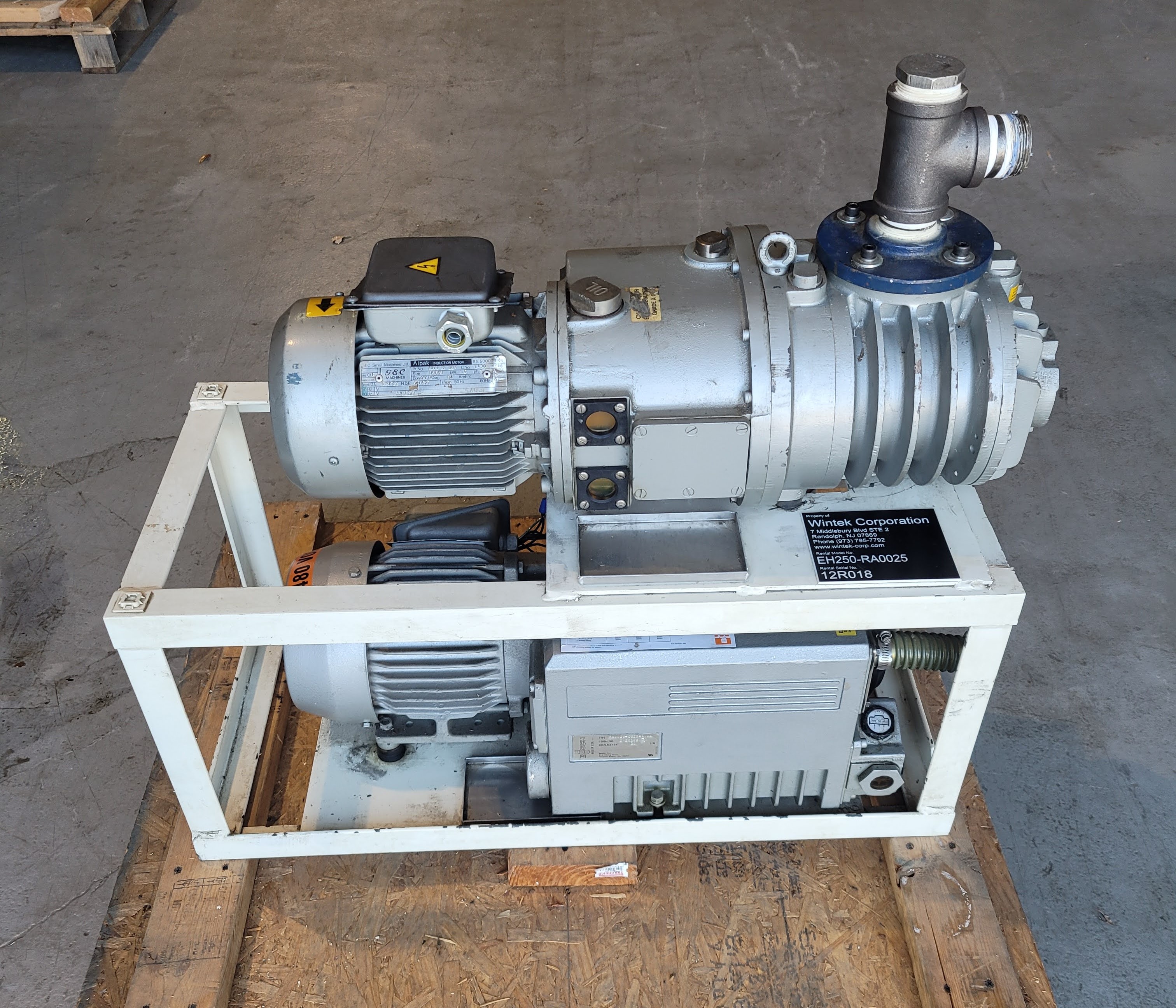

| 09R009 | Boosted/Rotary Vane Vacuum Pump | EH500-RA100 | 205 ACFM @ 3 Torr | No | Standard | No | 230/460 V | 2 HP Rotary Lobe Booster backed by a 5 HP Oil Lubricated Rotary Vane Pump | 47''L x 40''W x 44''H | 550 | $1,800 |  |
| 09R010 | Boosted/Rotary Vane Vacuum Pump | B150-RA0025 | 125 ACFM @ 2 Torr | No | Standard | No | 230/460 V | 3 HP Tuthill Booster Model MD 96-3206 backed by a Busch RA0025 2 HP Rotary Vane pmp; Compact, TEFC | 31"L x 47"W x 36"H | 500 | $1,500 |  |
| 09R014 | Liquid Ring Vacuum System | WSS-035/2-1FR | 25 ACFM @ 75 Torr | Yes | Standard | No | 230/460 V | 3 HP, CI pump, SS Separator | 66"L x 40"W x 54"H | 800 | $1,500 |  |
| 12R020 | Liquid Ring Vacuum System | C32R50ss-E-WSS-100V-1FR | 28 ACFM @ 10 Torr 100 ACFM @ 100 Torr | Yes | Standard | No | 230/460 V | 32 sq.ft pre-condenser, 50 gal Receiver (SS) w/ Cooling Jacket & Insulation; Liquid Ring Vacuum Pump (CI/CS) w/ air-jet, 7.5 HP | 80"L x 63"W x 100"H | 2,600 | $3,600 |  |
| 12R021 | Liquid Ring Vacuum System | F-WSS-80V-1FR | 70 ACFM @ 75 Torr | Yes | Standard | No | 230/460 V | Includes Inlet Filter, model F/WSS-080V-1FR-xp 5 HP Cl.1, Div.1 LRVP, CI/CS/Cu., Separator Tank w/Demister/Removable Top; (3) LS | 60"L x 30"W x 60"H | 850 | $2,400 |  |
| 13R023 | Dry Screw Vacuum Pump | Cobra NC-400 | 240 ACFM @ 1 Torr | No | Standard | Yes | NEMA 12 460 V | Includes Inlet Filter, 15 HP TEFC | 80"L x 48"W x 72"H | 1,650 | $4,200 |  |

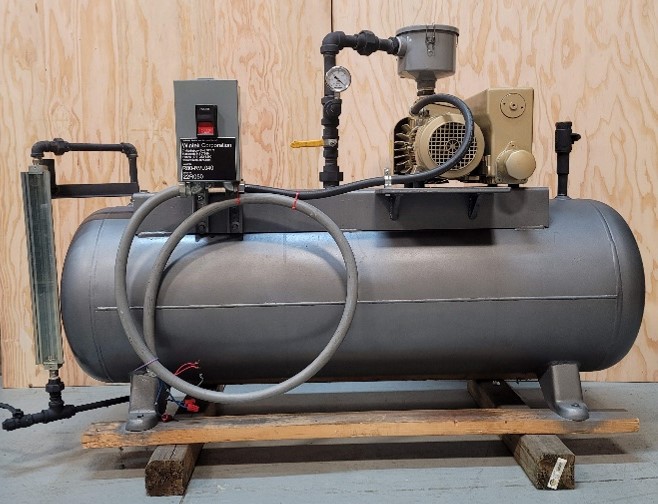

| 13R028 | Tank Mounted Rotary Vane Pump | R200-W-RC0250 | 120 ACFM @ 75 Torr | No | Standard | Yes | 460 V | TMS-1-RC0250, 200 gal tank; 10 HP Rotary Vane Pump 3/60/460 Starter Panel Hand/Auto Mode | 72"L x 30"W x 66"H | 1,200 | $2,100 |  |
| 14R029 | Dry Screw Vacuum System | KO8-VSB320-AC15R20 | 140 ACFM @ 1 Torr | Yes | Standard | Yes | N7 460 V | 10 HP Features an inlet KO Pot with a Dry Screw Vacuum Pump, after condenser and receiver | 72"L x 60"W x 84"H | 3,500 | $6,000 |  |
| 14R030 | Liquid Ring Vacuum System | C35R30-1T-WSS-75/2-1FR-ACss | 75 ACFM @ 100 Torr | Yes | Stainless | Yes | 460 V | 35 sq.ft pre-condenser, 30 gal receiver w/ insulation; Diaphragm Pump; Liquid Ring Vacuum Pump 5 HP, 29"HgV max, after-condenser | 80"L x 63"W x 100"H | 2,500 | $4,200 |  |
| 14R031 | Liquid Ring Vacuum System | C24R30-WSS-75/2-1FR-ACss | 75 ACFM @ 100 Torr | Yes | Stainless | Yes | 230 V | 24 sq.ft pre-condenser, 30 gal receiver w/ insulation; Liquid Ring Vacuum Pump 7.5 HP, 29"HgV max, after-condenser | 80"L x 63"W x 100"H | 2,500 | $4,200 | |
| 14R033 | Two-Stage Rotary Piston Vacuum Pump | KTC-112 | 90 ACFM @ 100 Torr | N/A | Standard | No | 230/460 V | 7 HP 107 CFM Displacement Rotary Piston Pump, 3 micron blank-off | 54"L x 48"W x 60"H | 900 | $2,400 |  |
| 15R034 | Knock-Out Pot | W12-cs | N/A | N/A | Standard | N/A | N/A | Knock-Out Pot (vac rated, non-code), 3"150#RF in/out, 2"npt drain, SS Demisters(2), 6"x8" manway, O-Ring Removable Top 70"H | 81"L x 32"W x 30"H | 600 | $450 |  |
| 15R036 | Boosted Dry Claw Vacuum System | EH2600-GV600 | 1300 ACFM @ 0.1 Torr | No | Standard | Yes | 460 V | Boosted Dry System w/Inlet Filter, N12 Panel 15 HP/30 HP | 48"L x 80"W x 72"H | 3,500 | $6,600 |  |
| 15R037 | Liquid Ring Vacuum System | WSS-200V-1FR | 150 ACFM @ 125 Torr | No | Standard | Yes | NEMA 12 Panel 460 V | 15 HP Full Recovery Liquid Ring Vacuum System, TEFC | 80”L x 40”W x 55"H | 1,000 | $2,250 |  |
| 15R038 | Knock-Out Pot | W12-cs | N/A | N/A | Standard | N/A | N/A | Knock-Out Pot (vac rated, non-code), 3"150#RF in/out, 2"npt drain, SS Demisters(2), 6"x8" manway, O-Ring Removable Top 70"H | 81"L x 32"W x 30"H | 600 | $450 |  |
| 15R040 | Oil-Free Rotary Vane Pump | RVD018L-01 | 16 ACFM @ 90 Torr | N/A | Standard | No | 120 V | 1.2 HP Dry Rotary Vane Pump, Single Phase Motor | 25"L x 35"W x 26"H | 100 | $325 |  |
| 17R042 | Knock-Out Pot | W16-cs | N/A | N/A | Standard | N/A | N/A | Knock-Out Pot (vac rated, ASME), 4"150#RF in/out, 2"npt drain, SS Demisters(2), O-Ring Removable Top 70"H | 92"L x 32"W x 33"H | 700 | $600 |  |
| 19R044 | Heat Exchanger | C-1760-3.5-6-0 | N/A | N/A | Carbon Steel Shell with Copper Tubes | N/A | N/A | 8" x 60" Shell & Tube Heat Exchanger Shell rated for 300 PSI Tubes rated for 150 PSI | 72"L x 16"W x 18"H | 325 | $645 |  |

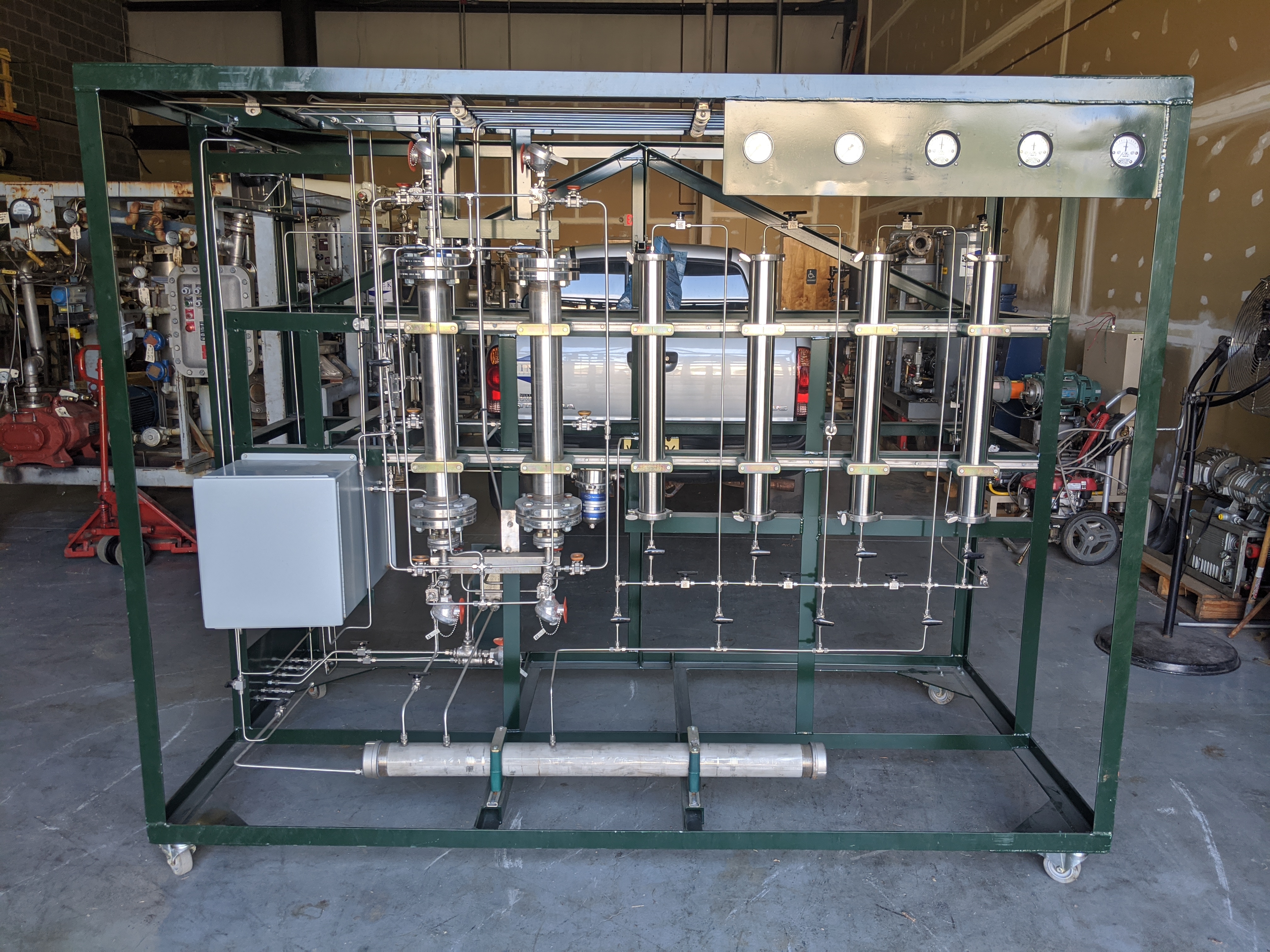

| 20R045 | MSDU Test Rig | MSDU-LT | N/A | Yes | Stainless | Yes | 460V | Molecular Sieve Dehydration Pilot-Scale Liquid Phase Testing Unit | 96” L x 48” W x 80” H | 500 | $6,000 |  |

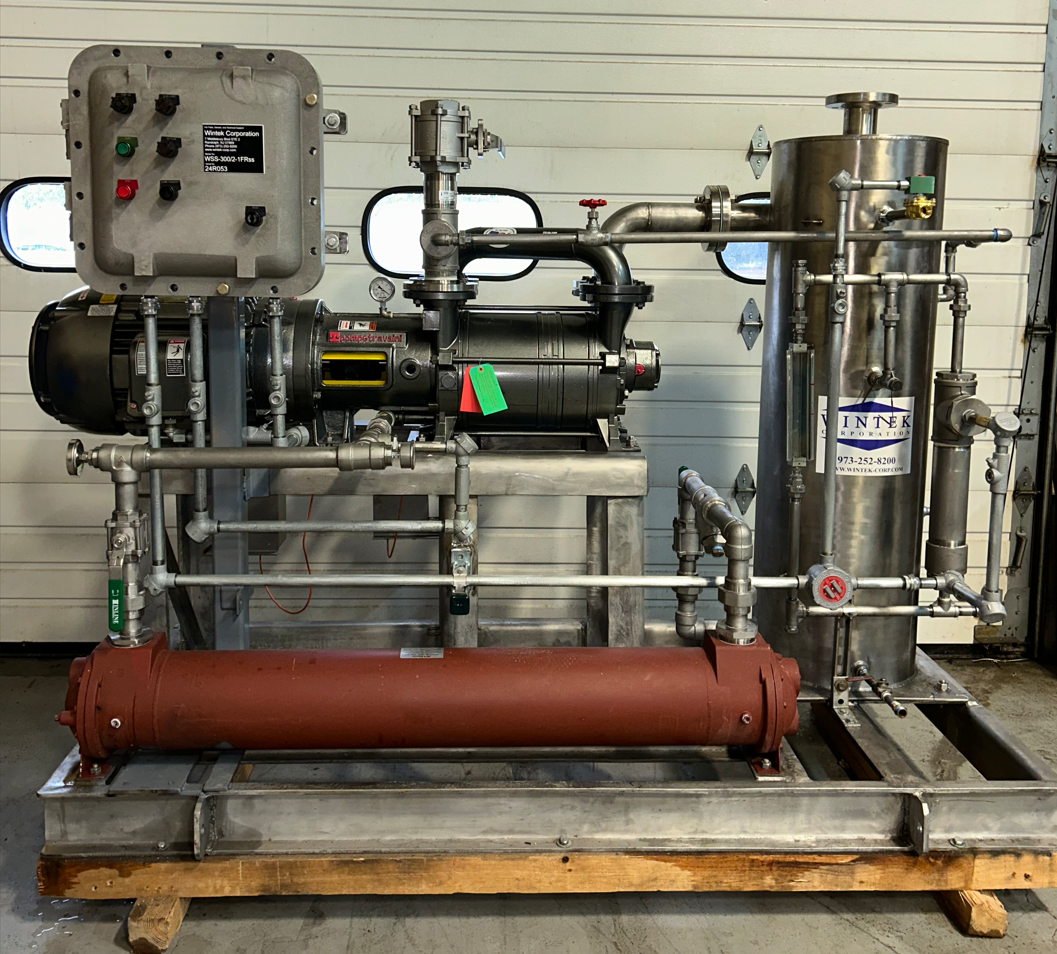

| 20R046 | Liquid Ring Vacuum System | C23-WSS-35/V-1FRss | 30 ACFM @ 100 Torr | Yes | Stainless | No | 460V | 3 HP Liquid Ring Vacuum Pump, Full Recovery System, All Stainless Construction, w/ 23 sq.ft. Pre-Condenser | TBD | TBD | $2,400 |  |
